Distribution

Copy files (plugins, shared content) from a source repository to a target repository by path patterns. Publishing, remapping, locks skipped.

Introduction

Distribution copies files (a plugin, a shared content pack) from a source repository to a target repository, limited to a set of path patterns. It creates new revisions in the target, so the usual incremental synchronization propagates the content to clients. It is the way to share the same plugin across several projects without manual copy and paste.

Access and roles

An access model different from the other tabs Distribution is not gated like the other tabs. It requires the manage_rules capability, held by admin and lead, across the entire server. A project_admin, which holds no capability, does not have access. A lead, on the other hand, can link any repository to any other.

Create a link

1. Open the Distribution tab

The Distribution tab is in the SERVER row: a link connects two repositories, so it does not depend on the repository chosen in the PROJECT row. Click + New Link, top right: the New Distribution Link dialog opens.

2. Choose the source, the target and the paths

Source Repository is the repository the files come from, Target Repository the destination one: the chosen source disappears from the target list, a link cannot loop back on itself. Path Patterns takes one pattern per line (for example Plugins/MyPlugin/, Content/SharedAssets/), and at least one is required: without a pattern, nothing would be copied.

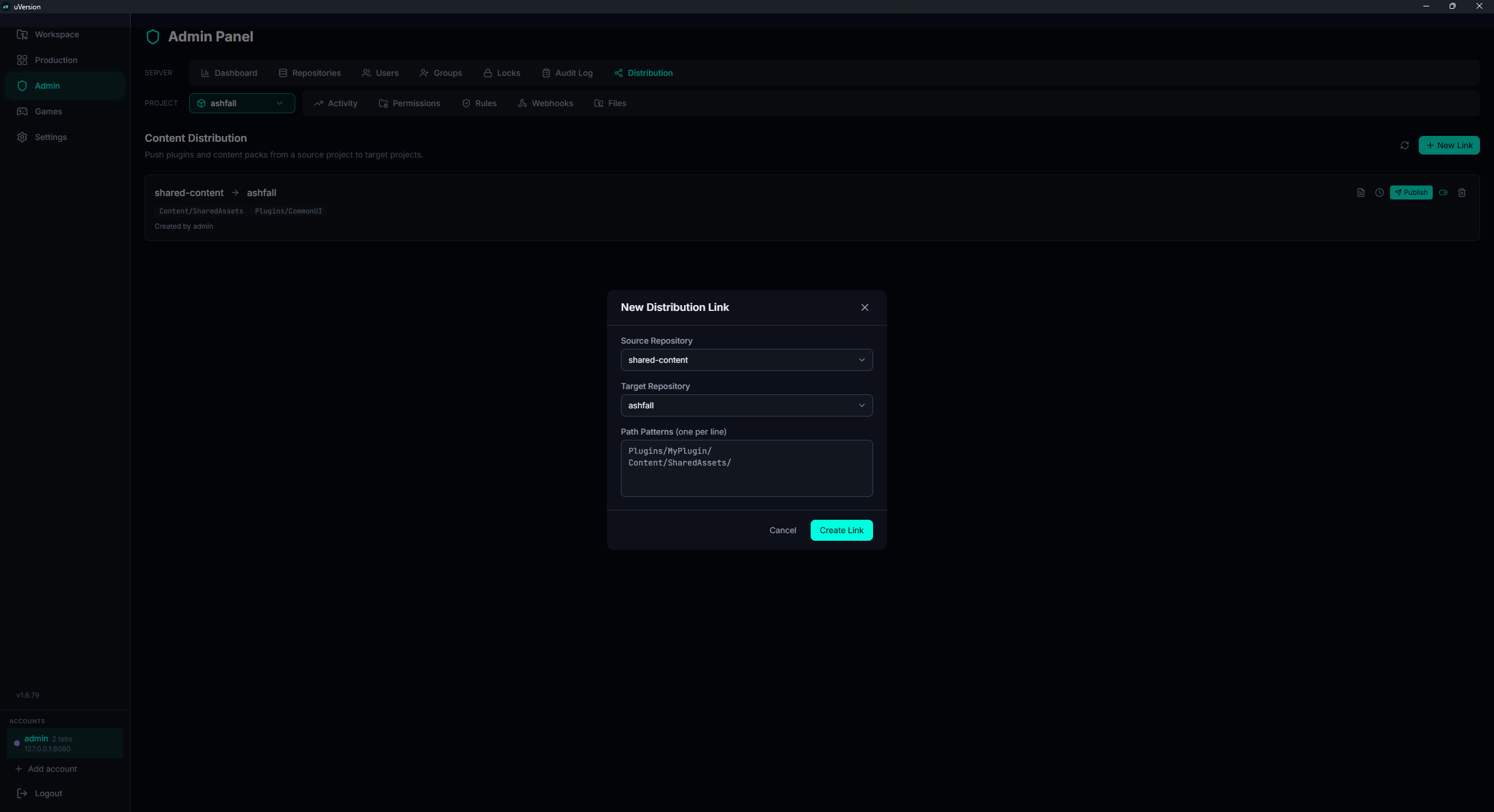

The New Distribution Link dialog: the Source Repository and Target Repository menus, the Path Patterns (one per line) area filled with two patterns, and the Cancel and Create Link buttons.

3. Confirm with Create Link

The link appears in the list at once. A link that already exists between the same two repositories is refused (conflict): edit the existing one rather than creating a second.

Path patterns

A pattern matches a path if it appears anywhere in it (a "contains" style search). So a Plugins/uVersion pattern matches DefaultProject/Plugins/uVersion/Source/Foo.cpp regardless of the project prefix. The trailing slash changes nothing.

Publishing

1. Locate the link and its actions

Each link takes one row of the list: source → cible, its patterns as pills, who created it and the date of the last publication. The actions are grouped on the right of the row: Show pending files (file icon), Publish history (clock), Publish, the switch that enables or disables the link, and deletion.

The Distribution tab, titled Content Distribution, with one link in the list: the source repository name, the arrow, the target repository name, the patterns as pills below, the Created by and Last published line, and on the right the file and clock icons, the Publish button, the switch and the trash can.

2. Check what is about to go out

Show pending files expands, under the row, the list of files that differ, with their source revision and a total in the title (Pending Files (N)). Each carries its state: new, modified or locked. If everything is up to date, the panel says so.

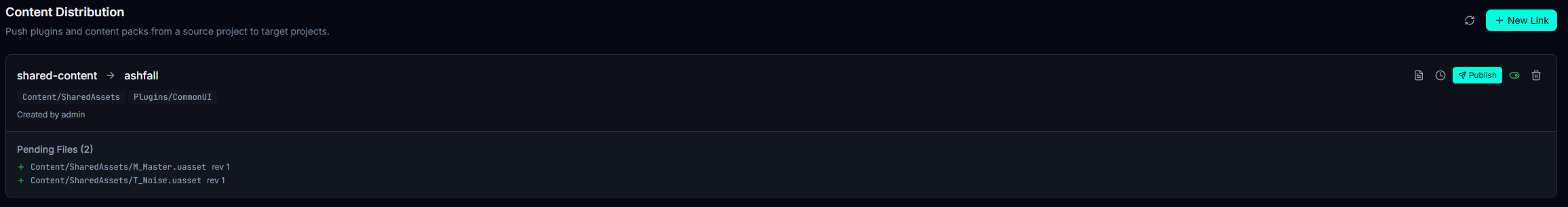

The Pending Files panel expanded under a link row: the paths marked new, modified or locked with their source revision, and above the list the green banner left by the last publication.

3. Publish

The Publish button runs the copy. A green banner summarizes "Published: X source files found, Y updated, Z skipped (locked), W unchanged". The button is disabled as long as the link is inactive, and publishing an inactive link returns an explicit error.

A file that is locked in the target is skipped, not overwritten. A file whose content is identical (same hash) is counted as unchanged and skipped. Publishing is atomic (a single transaction).

Publish history (clock) then gives the last 50 publications: how many files updated and skipped, by whom, and when.

Remapping and revisions

The path is rewritten for the target: uVersion strips whatever precedes the pattern that matched, then adds the prefix detected on the target. Example: source DefaultProject/Plugins/uVersion/foo.cpp, pattern Plugins/uVersion, target prefix CineDroneStudio/ → CineDroneStudio/Plugins/uVersion/foo.cpp. The target prefix is inferred from an existing file in the target (handling repositories with or without a project subfolder).

Revision numbering Distributed revisions use a global counter above the target's current revision, so that incremental sync picks them up. A file's history can therefore "jump" (e.g. rev 1 then rev 200): this is cosmetic. Chunks are shared (no data duplication, just a reference increment).

Common pitfalls

"Publish" is greyed out

The link is inactive. Enable it first. Publishing an inactive link returns an explicit error.

A file is not updated in the target

Either it is locked on the target side (it is then skipped and counted as "locked"), or its content is already identical (counted as "unchanged"). Check the publication summary and the pending files list.

A project_admin does not see the tab

This is intended: distribution requires manage_rules (admin or lead). A project_admin has no access, even on its own repositories.
